Outdoor Glass Railing

We offer two options: glass railings with aluminum frame and topless glass railings.

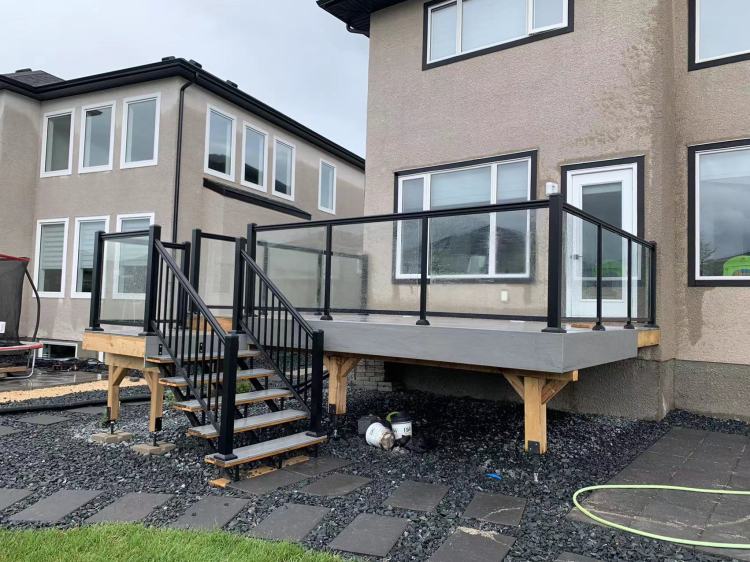

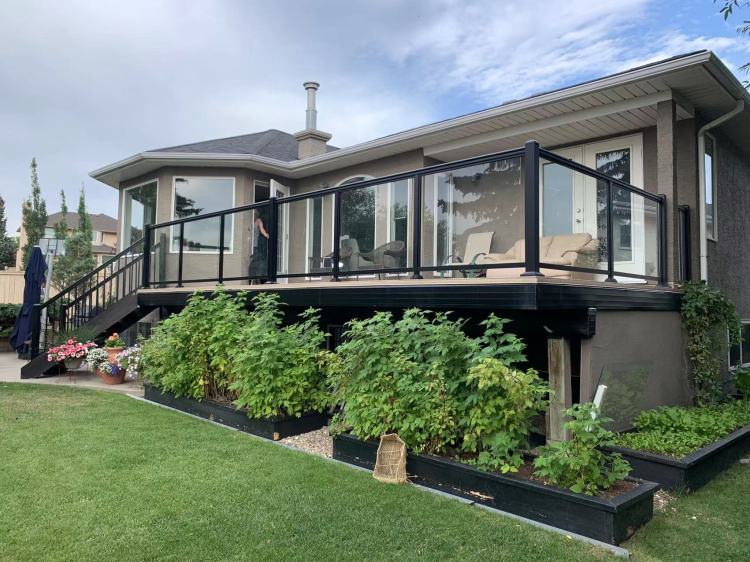

Glass Railings with Aluminum Frame

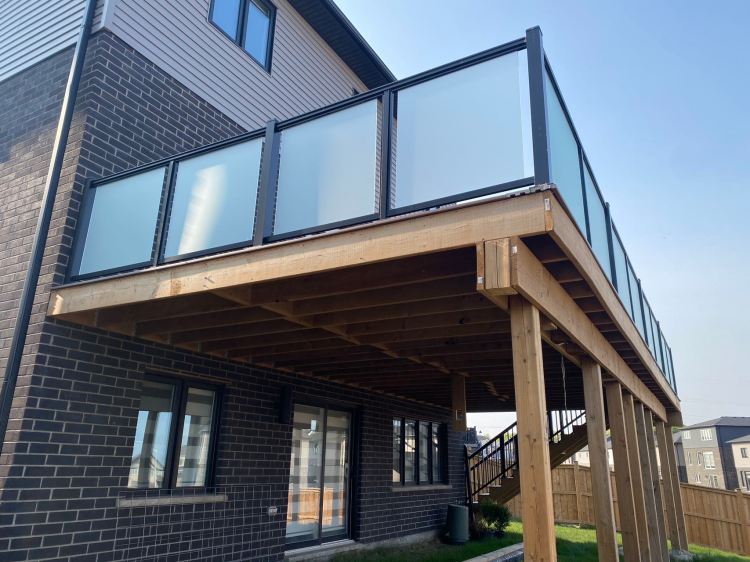

  • glass finish: clear, frosted, tinted (ocean blue color only)
  • thickness: 6mm
  • height: 35 7/8″
  • accessories: glass gasket, rubber block
  • widths of clear glass panels: 24″, 36″, 40″, 44″, 48″, 52″, 56″, 60″
  • widths of frosted glass panels: 24″, 36″, 40″, 50″
  • widths of tinted glass panels: 24″, 36″, 40″, 50″

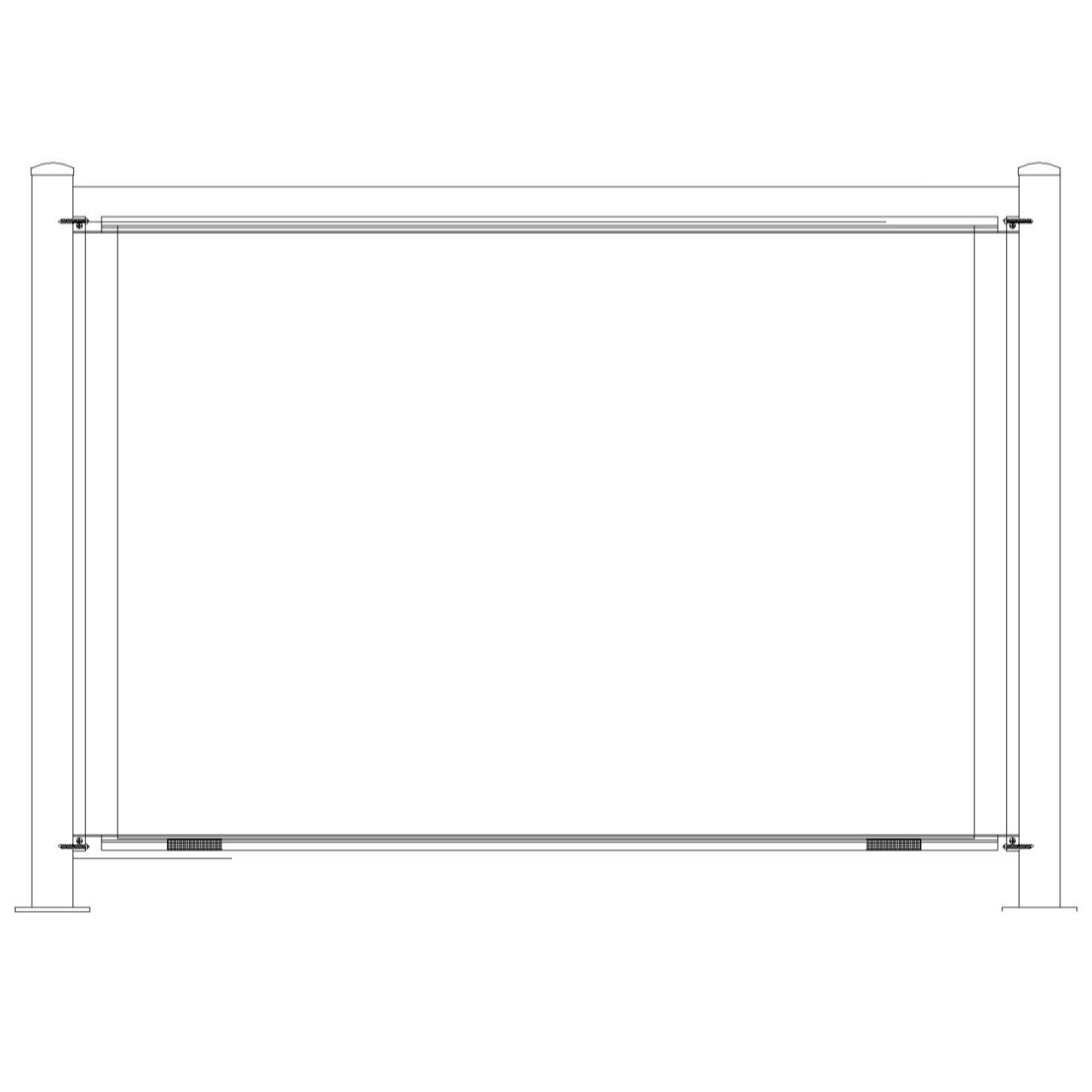

How to install the outdoor glass railings with aluminum frame?

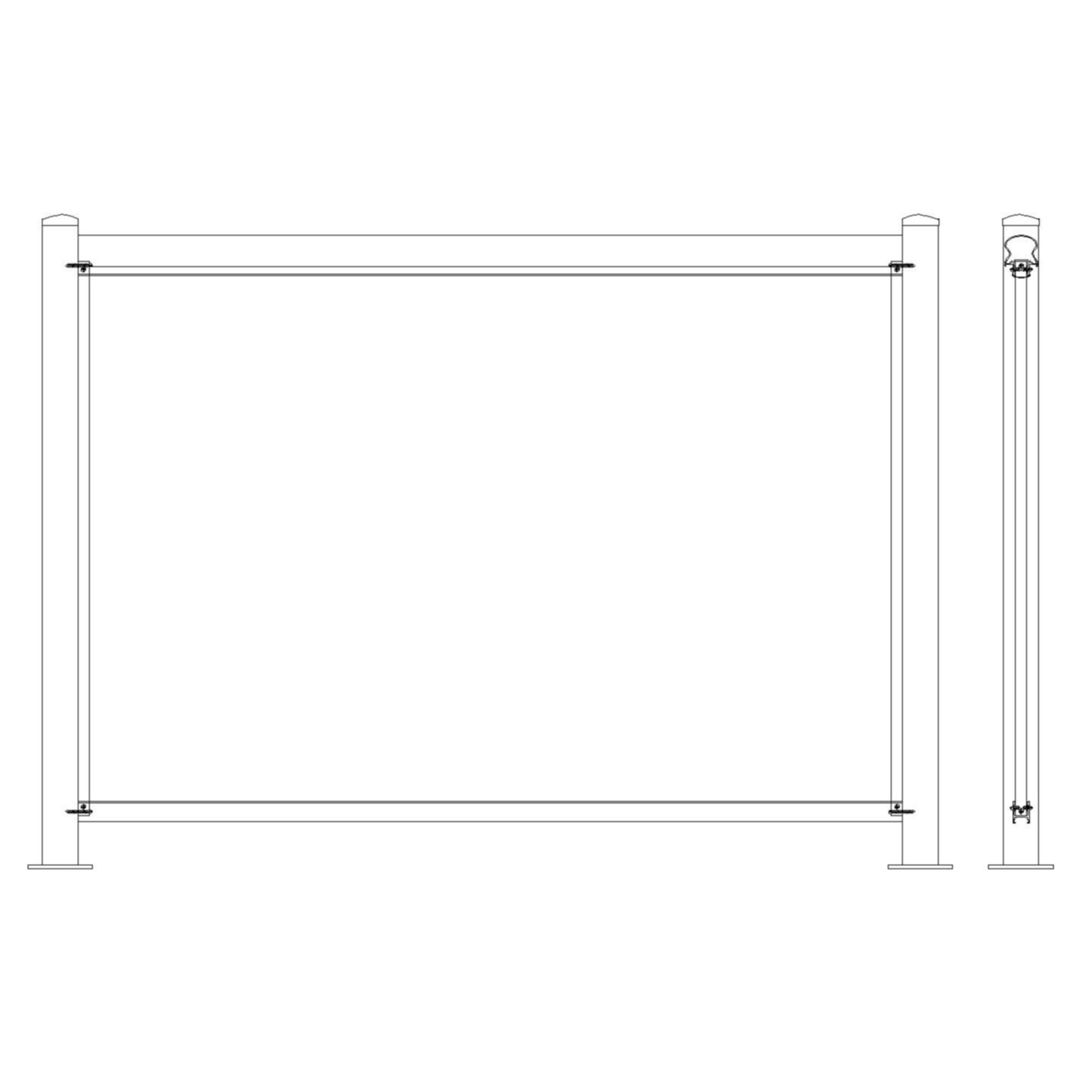

  1. Install the Aluminum Frame
    Refer to the “Aluminum Picket Railings” section for detailed instructions on setting up the aluminum frame.

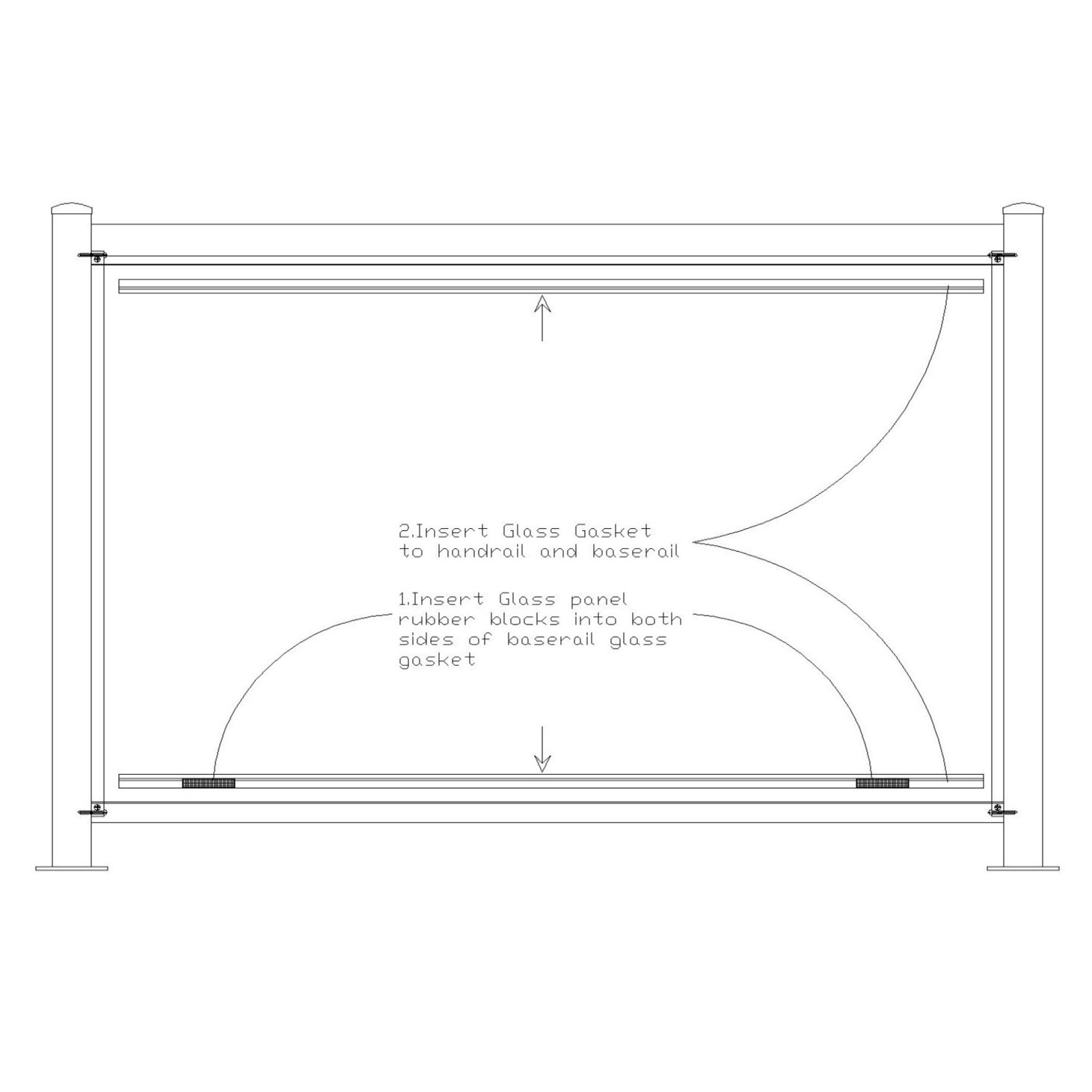

  2. Place Rubber Blocks
    Insert a rubber block at each end of the glass gasket, then position the gasket into the bottom rail.
  3. Install the Glass Gasket in the Handrail
    Securely insert the glass gasket into the handrail.

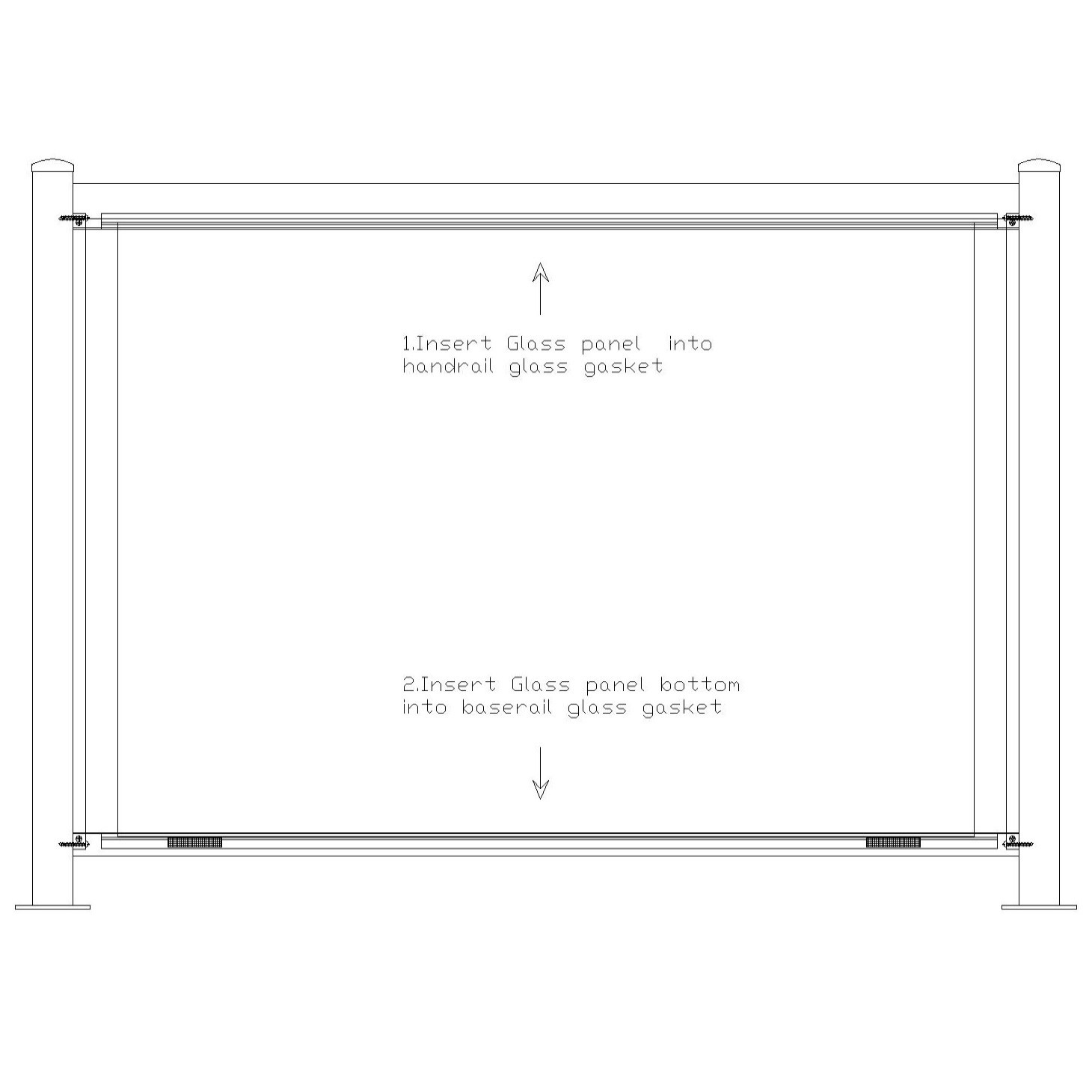

  4. Insert the Glass Panel
    First, fit the glass panel into the gasket of the handrail. Push it upward, then carefully lower it into the gasket of the base rail.

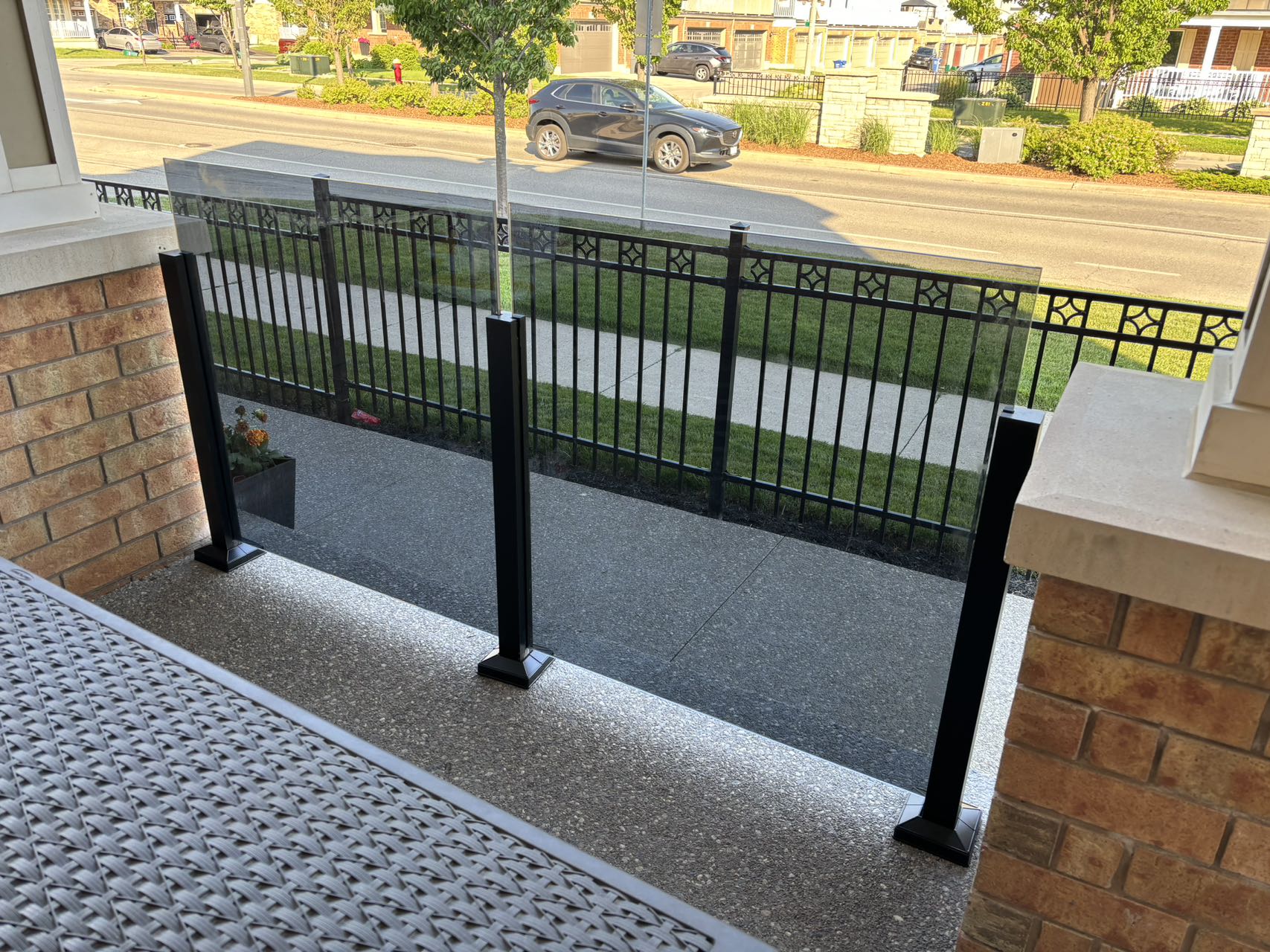

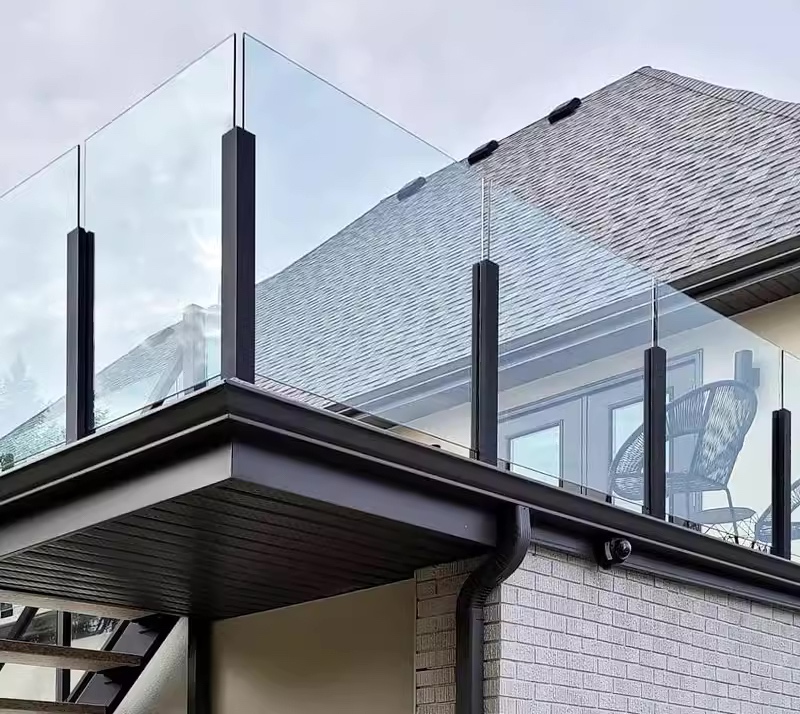

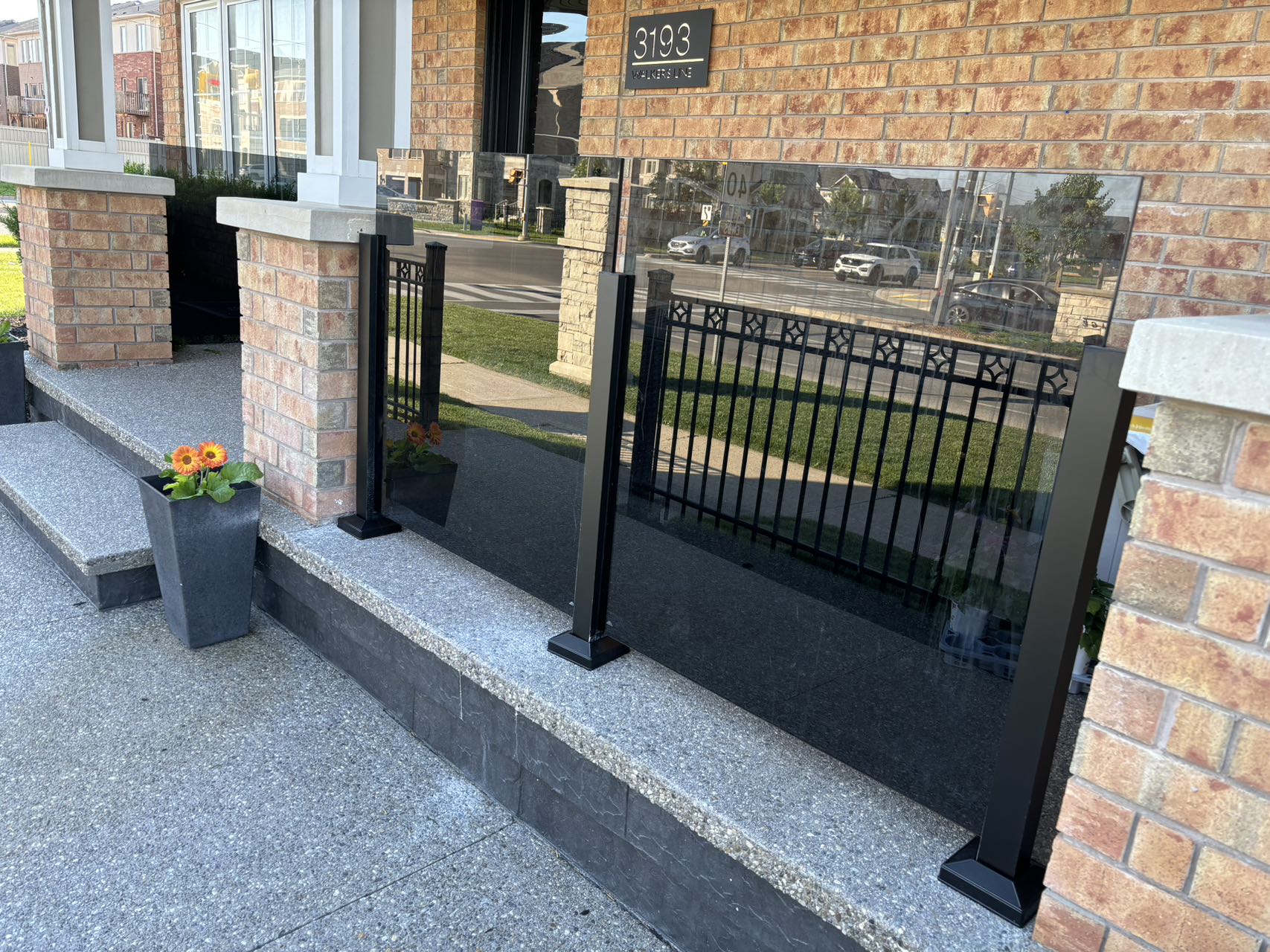

Topless Glass Railings

  • clear tempered glass in stock only, 12mm thickness
  • width of glass panel: 27″, 30″, 33″, 36.15″, 45″
  • height of glass panel: 40″
  • dimensions of aluminum post: 2.36″ x 2.36″ x 33.75″
  • available color of post: black, white

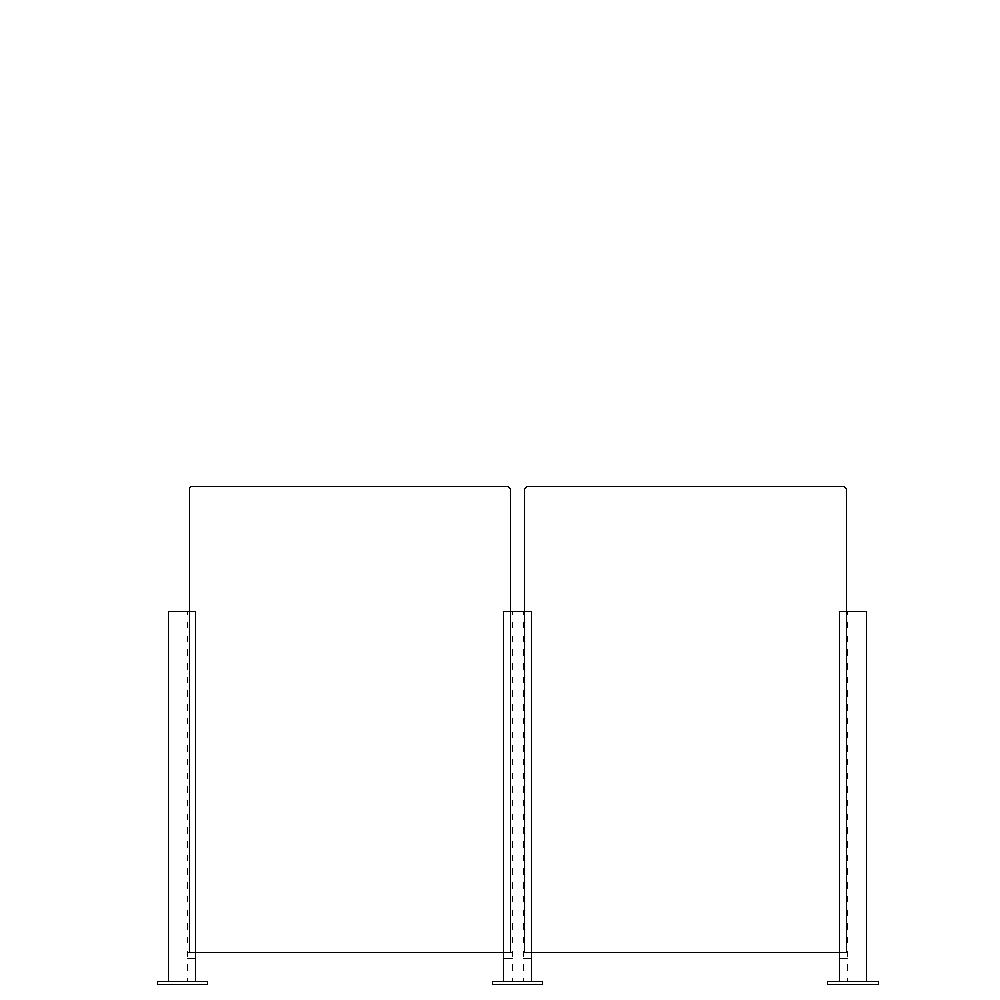

How to install the topless glass railings?

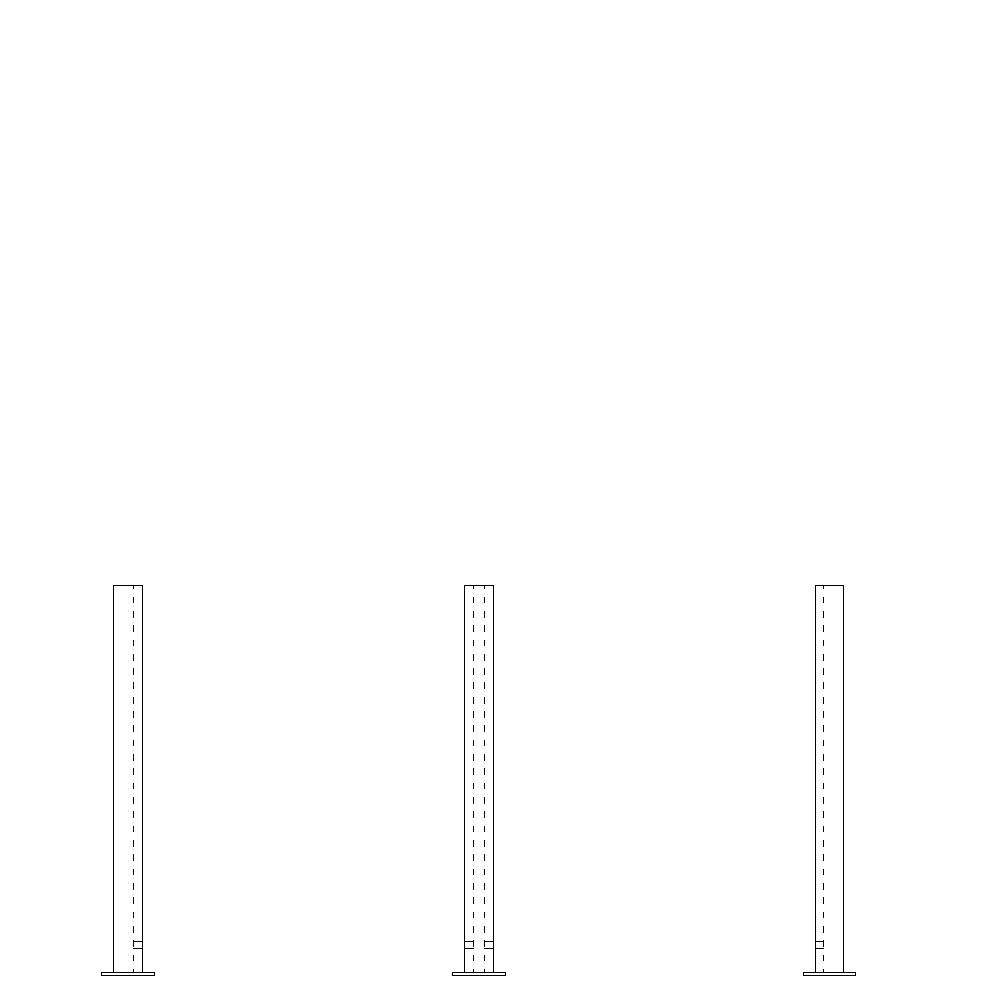

  1. Install the posts, ensuring they are perfectly vertical.

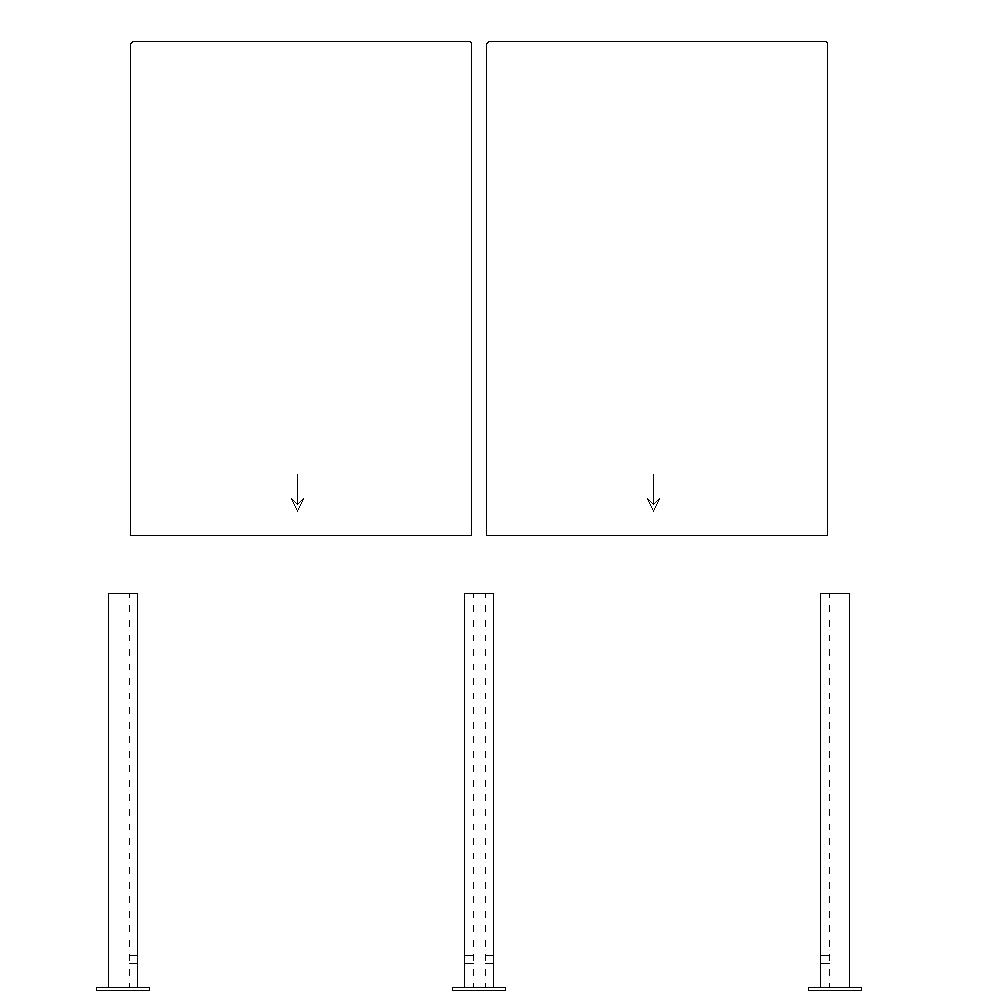

  2. Apply soapy water to both side edges of the glass, then gently insert it into the post slot from top to bottom.
